MRX2 Non-CW
| 5393908-8 | |
| Ultrasound | |
| Peças GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto

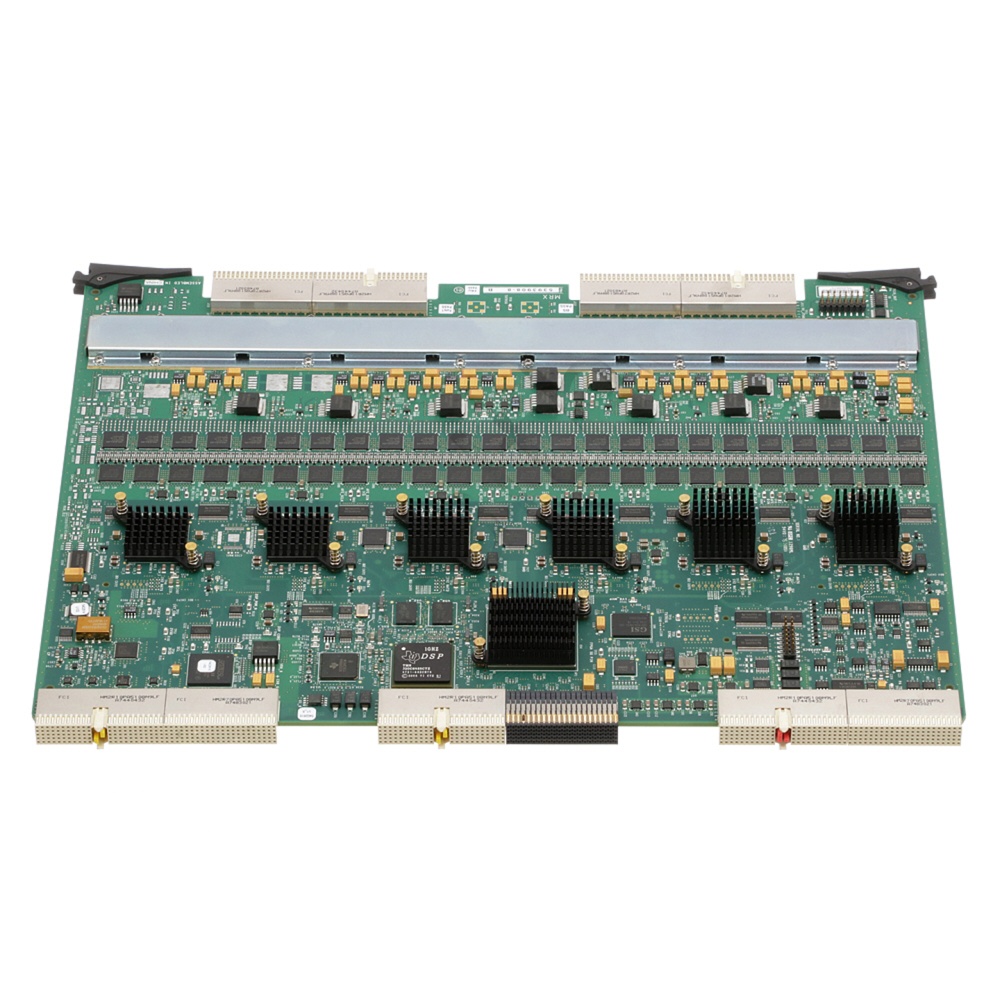

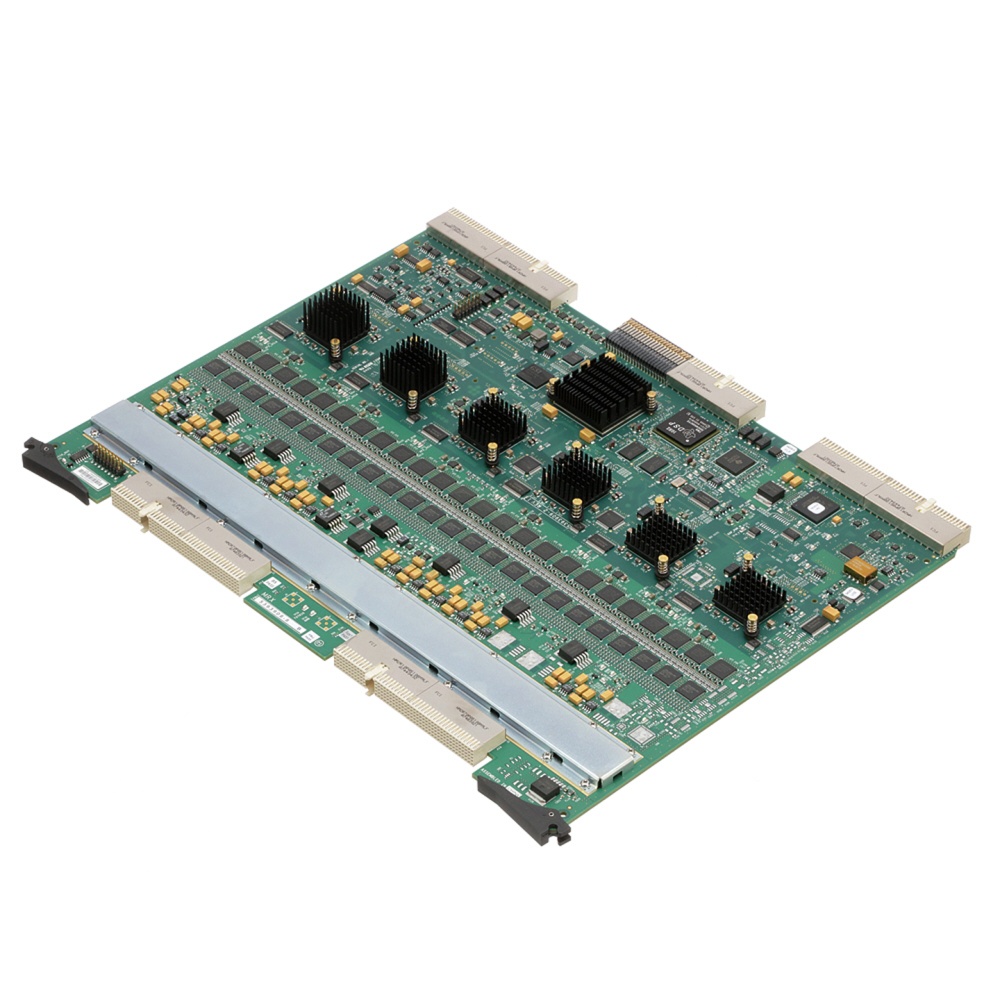

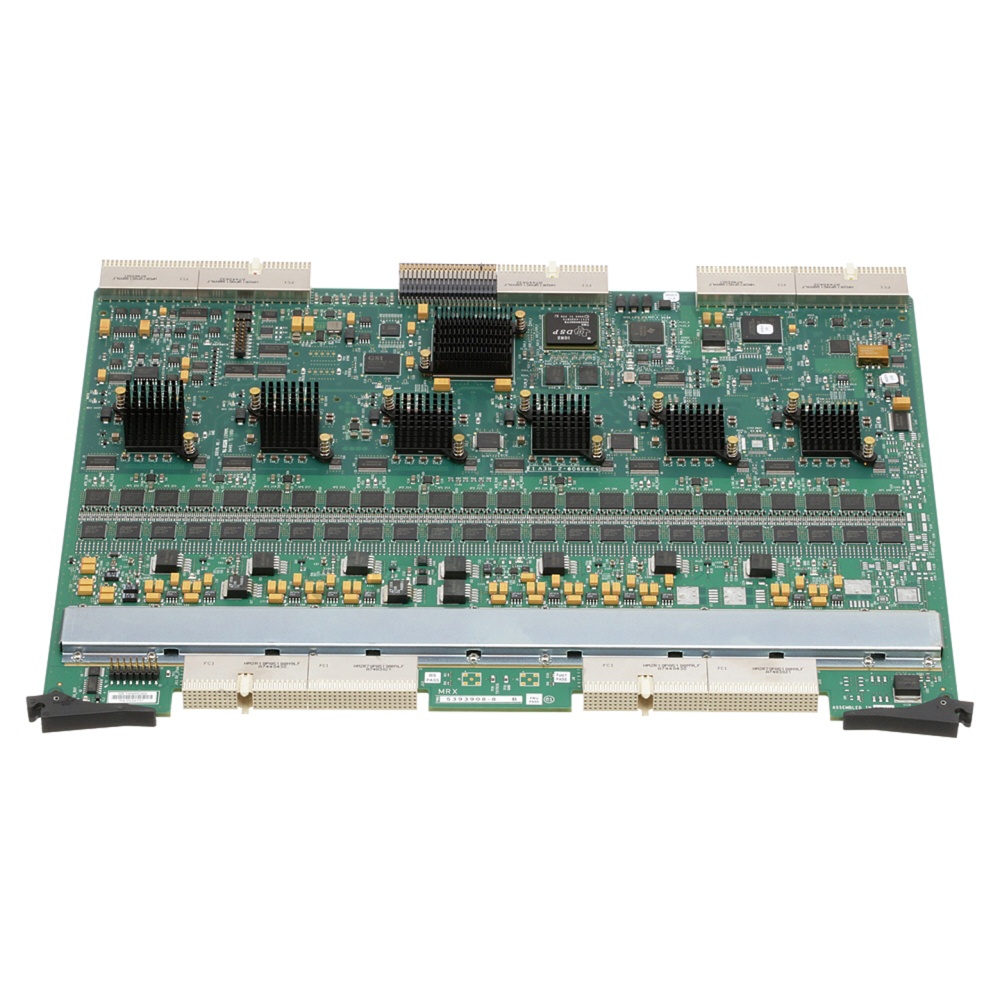

The Mixed Signal Received Board (MRX2) Non-CW is used in the ultrasound. The MRX Board combines the functionality of the Receiver Boards (DRX and GRX) and the GFI. The Transmit Pulse bursts transmitted, are still routed from the GTX board to the XD bus to the relay board where the ultrasound probes send the energy into the body. Weak ultrasound echoes from body structures and blood cells are received from the probes and routed to the relay board and the XD bus to the MRX board. The MRX board amplifies the ultrasound signal and connects it with an A/D converter to the digital domain. The digital signals are then further processed on the MRX boards. The components are soldered to a copper thermal pad on the circuit board. The voltage sensitivity enough to perform in a specific environment. The surface finish of the product is excellent and has high production rate. The product is securely packaged in a high quality packing box to avoid physical damage during transit. It is used in a wide range of medical equipment such as MSA Monitoring and other medical equipment.
Produtos Compatíveis
LOGIQ 200
LOGIQ E9
The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.
The LOGIQ E9 can help you:
Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
LOGIQ 3
LOGIQ e
Voluson 730
