Cable Alphanumeric Keyboard
| GA200368 | |
| Ultrasound | |
| GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto

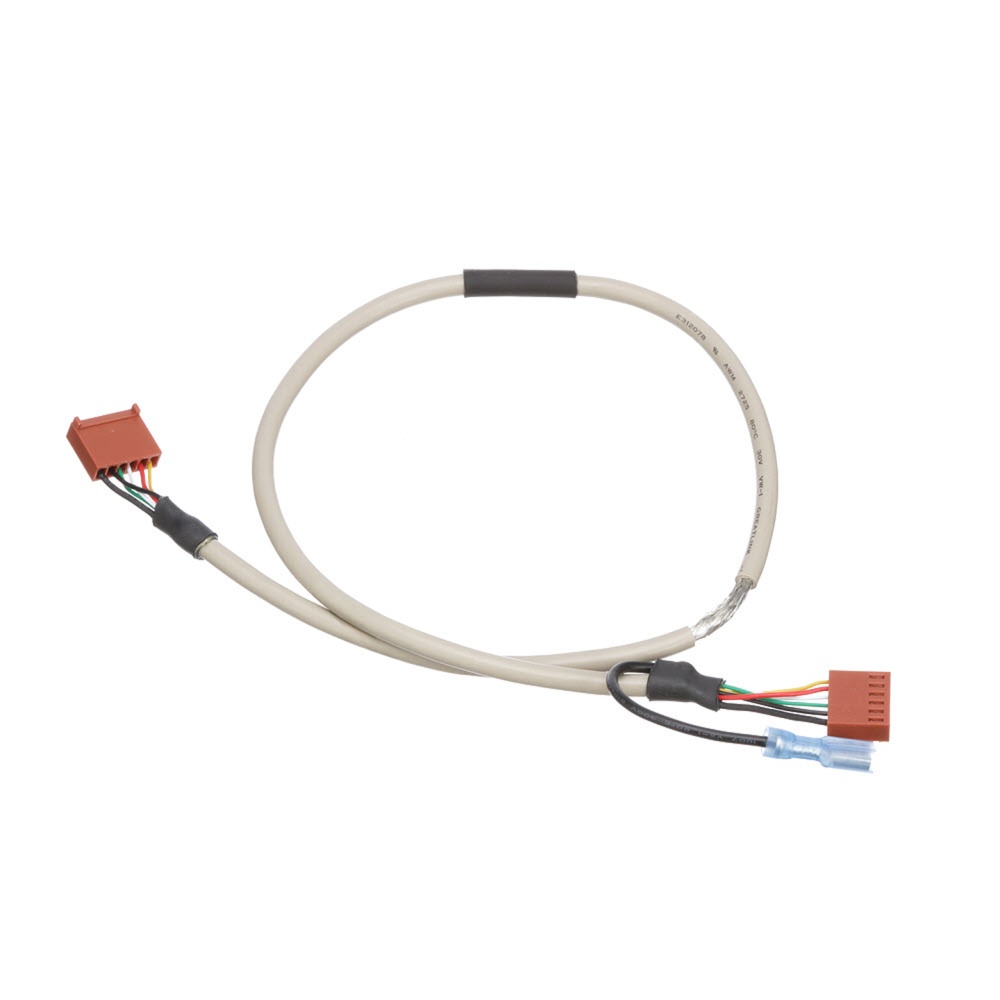

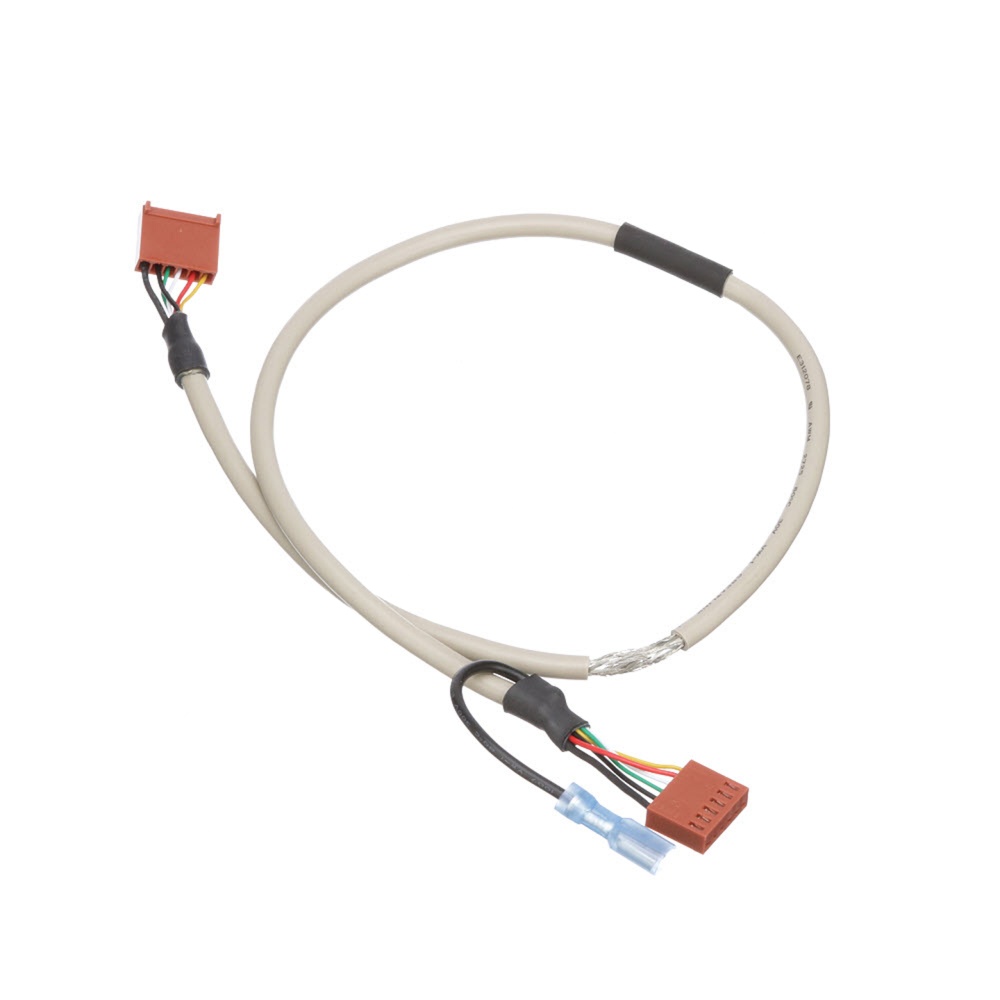

The Cable Alphanumeric Keyboard is used in the operator panel of ultrasound devices. The alphanumeric keyboard is connected to USB HUB, which in turn is connected to the display interface. The alphanumeric keyboard is situated on a drawer under the control panel. The operator panel is a complex user interaction device with several sub devices. This includes a trackball with buttons, an alphanumeric keyboard, a custom keyboard, and a touch panel overlay. The user can edit the actual text in the examination list window using the alphanumeric keyboard and by inserting pre-defined text input. The connection between operator main control board and alphanumeric keyboard which is mounted in a separate drawer is provided with the help of a cable. The cable has a 12 Volt USB link for the keyboard backlight and an external ground wire for Electro-Static Discharge (ESD). The 21 inch cable consists of 24 AWG soldered black wires with a connector housing termination at both the ends. It includes heat shrink reliefs at both the ends. The cable is provided with ESD grounding which helps to prevent build up static electricity and to safely ground a person working with the device. It is being used in Vivid q, Venue 40, CT LightSpeed 3.X Ultra 8-Slice and UL Vivid E9, among others.
